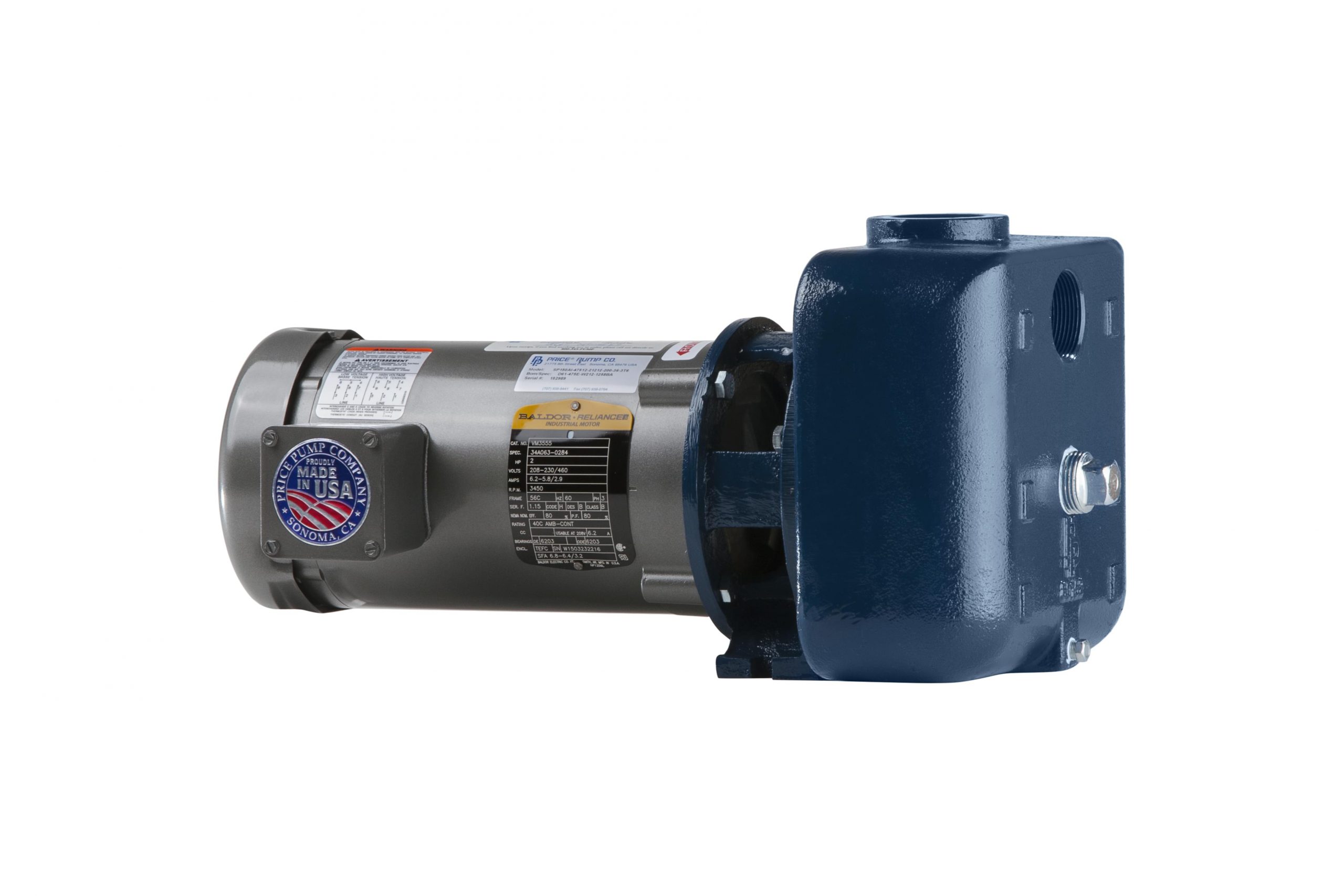

Price Pump® Model SP
Close Coupled Self Priming Horizontal Centrifugal Pump
Flows to 150 GPM (568 LPM) / Heads to 95 feet (29 meters)
Get Quote DocumentsSize:
SP150-1-1/2" x 1-1/2" x 4-3/4"Features:
- Compact close-coupled design
- Standard NEMA 56C motor
- Mechanical seal: 3/4″ Type 21 Buna, carbon vs. ceramic standard on cast iron pumps; 3/4″ Type 21 Fluorocarbon, ceramic vs. carbon is standard on 316SS pumps
- Self-priming pump
- Optional seal face materials and elastomers available
- Semi-open impeller
- Seal flush available
- Optional power frame available
- Back pull out design
Materials:
- SP150 AI (Cast Iron)
- SP150 SS (316SS)
- SP150 SF (Cast Iron-Stainless Fitted)
Technical Information
Minimum Recommended Flow – GPM (LPM): 10 (38)
Maximum Solid Size – inch (mm): 0.06 (1.5)
Maximum Temperature – °F (°C): 300°F (149°C)
| Priming Times (minutes/seconds) | Suction Lift – feet (meters) | |||||
| Model# | Impeller Size | 5 (1.5) | 10 (3) | 15 (4.5) | 20 (6) | |
| SP150-42507 | 4.25/.07 | 1:30 | 3:45 | 6:30 | 12:25 | |
| SP150-46312 | 4.63/12 | 1:00 | 2:25 | 5:25 | 10:00 | |
| SP150-47525 | 4.75/.25 | 0:38 | 1:15 | 2:48 | 6:15 | |
| SP150-47550 | 4.75/.50 | 0:20 | 0:35 | 1:05 | 2:25 | |
For all other impeller sizes interpolate to achieve approximate priming times.
Materials of Construction
| SP150AI | SP150SS | SP150SF | ||
| Volute/Diffuser | Cast Iron | 316SS | Cast Iron | |
| Impeller | Cast Iron | 316SS | 316SS | |
| Bracket | Cast Iron | 316SS | Cast Iron | |
| Gasket | Synthetic Fiber | Teflon® | Synthetic Fiber | |
| Shaft | 316SS | 316SS | 316SS | |
| Fasteners | 316SS | 316SS | 316SS |
Applications
- Ground water remediation
- Chemical sump pumps
- Filters
- Wastewater treatment
- Chemical transfer
- Dewatering
- Pumping solvents
- Agricultural
